Write a commentDEC 4000 AXP
Minicomputer
| Company: | DEC |
| Bus: | IEEE FutureBus+ Profile B |
| Dimensions: | 50 x 88 x 77cm |
| Introduction: | 1992 |
| Maximum memory size: | 512MB |
| Maximum number of CPUs: | 2 |
| Price: | 77000 |
| Weight: | 124kg |
| uses architecture: | Alpha |
| runs os: | DEC VMS |
| runs os: | DEC Digital UNIX/Tru64 UNIX |
| Computer root: | Computer |
| System class: | Minicomputer |
DEC 4000 AXP in the collection.
Photos

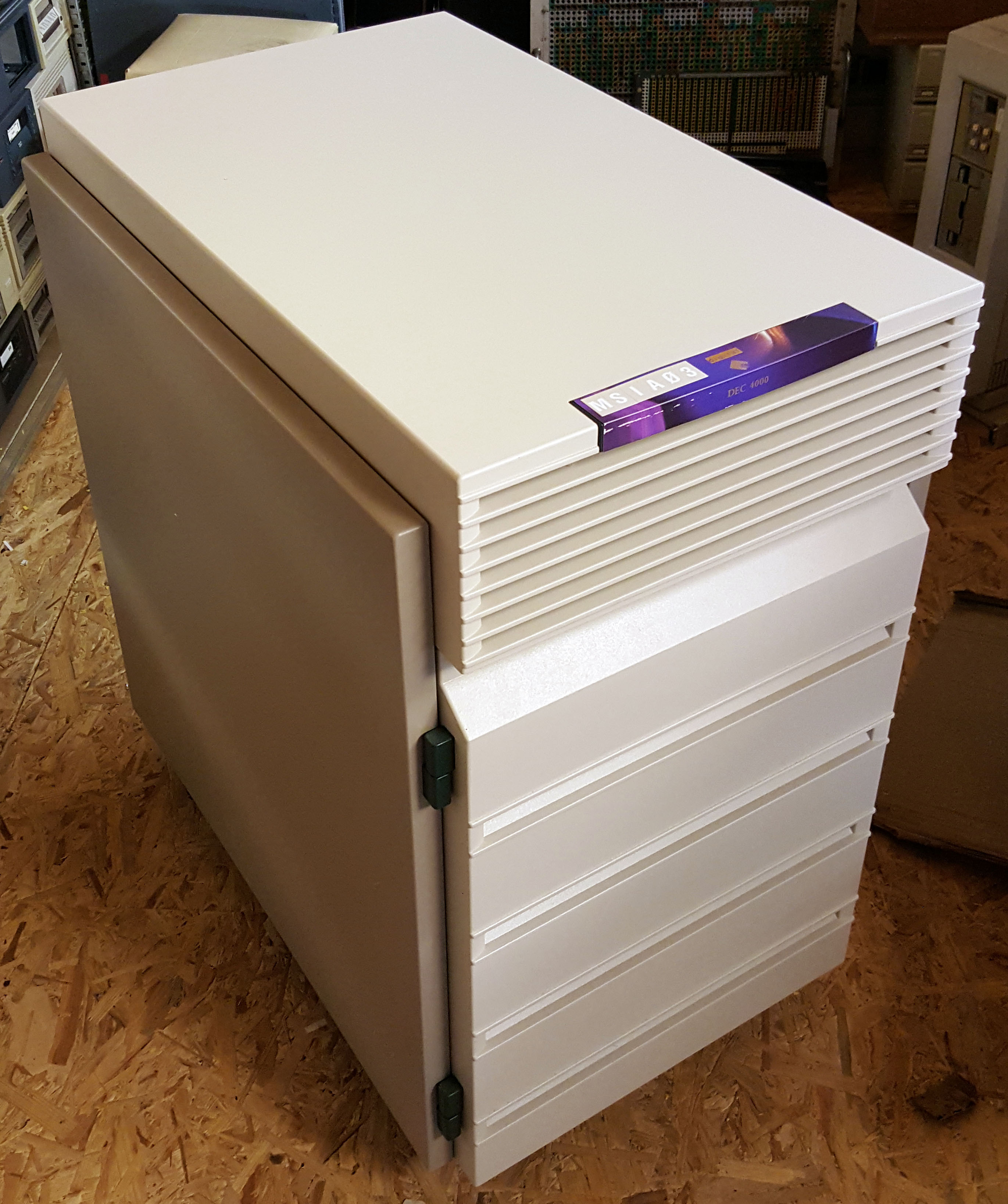

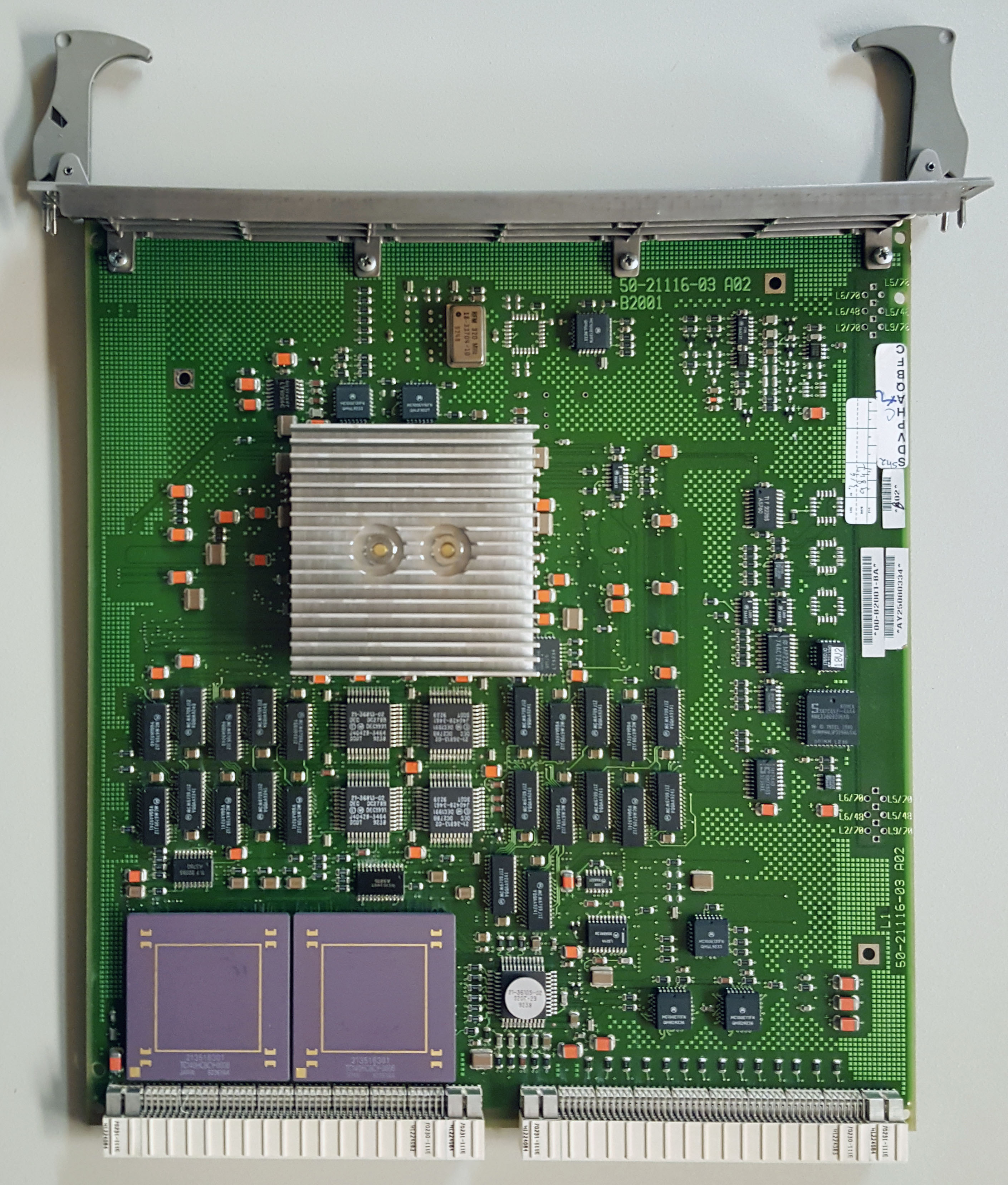

The DEC 4000 AXP was part of the first generation of Alpha CPU based systems. Positioned as a departmental server, it was larger than the DEC 3000 AXP workgroup server, but smaller than the DEC 7000 AXP enterprise server. Originally, there were two models, 610 and 620, with 1 or 2 160MHz CPUs. Later, models 710 and 720 were added, with 190 MHz CPUs. All three of my DEC 4000s seem to have started life as a model 610 (according to the stickers on the back), but a second CPU was added to each of them later, turning them into model 620s. I changed one of them back to a model 610, by removing a (broken) CPU module.

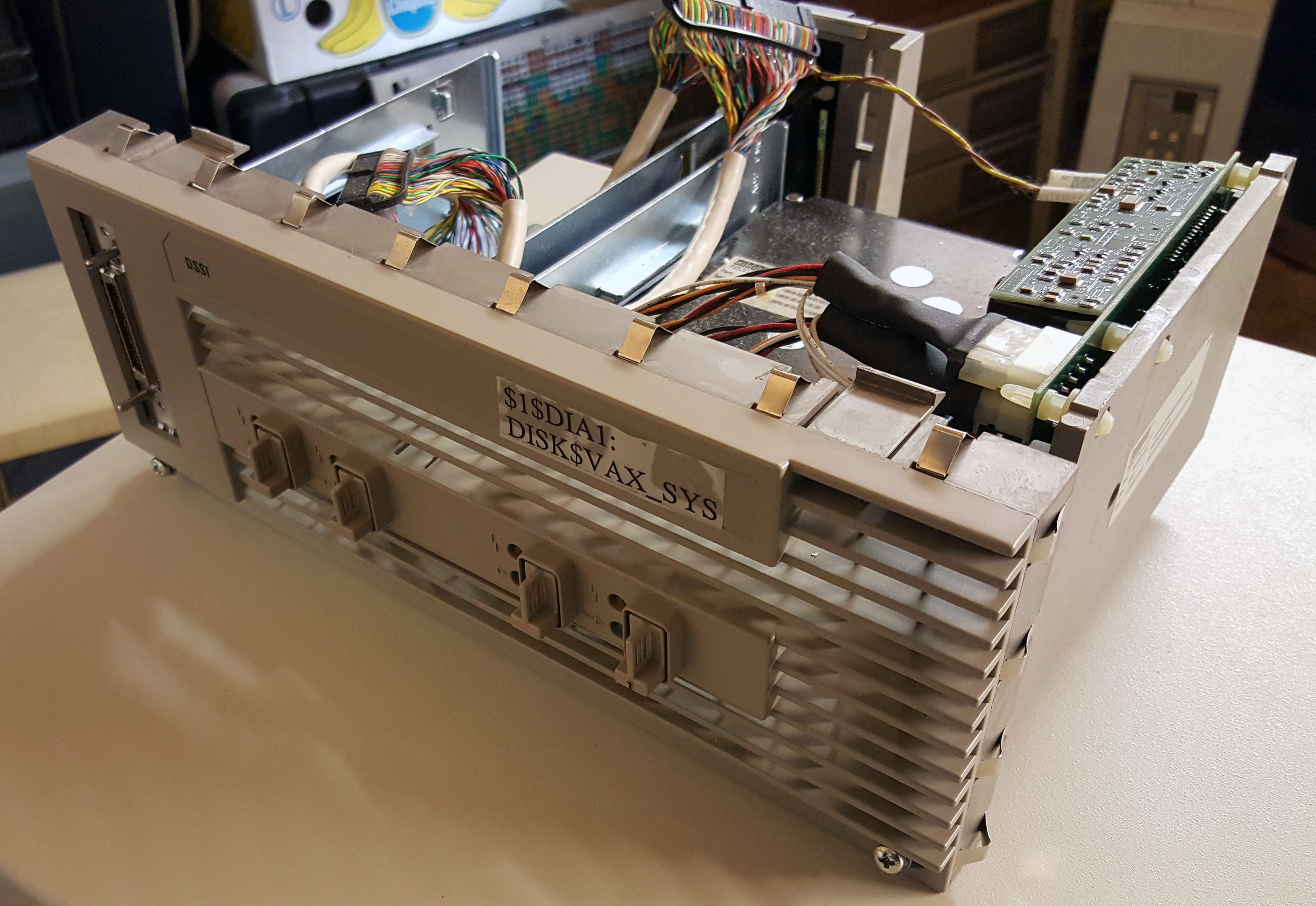

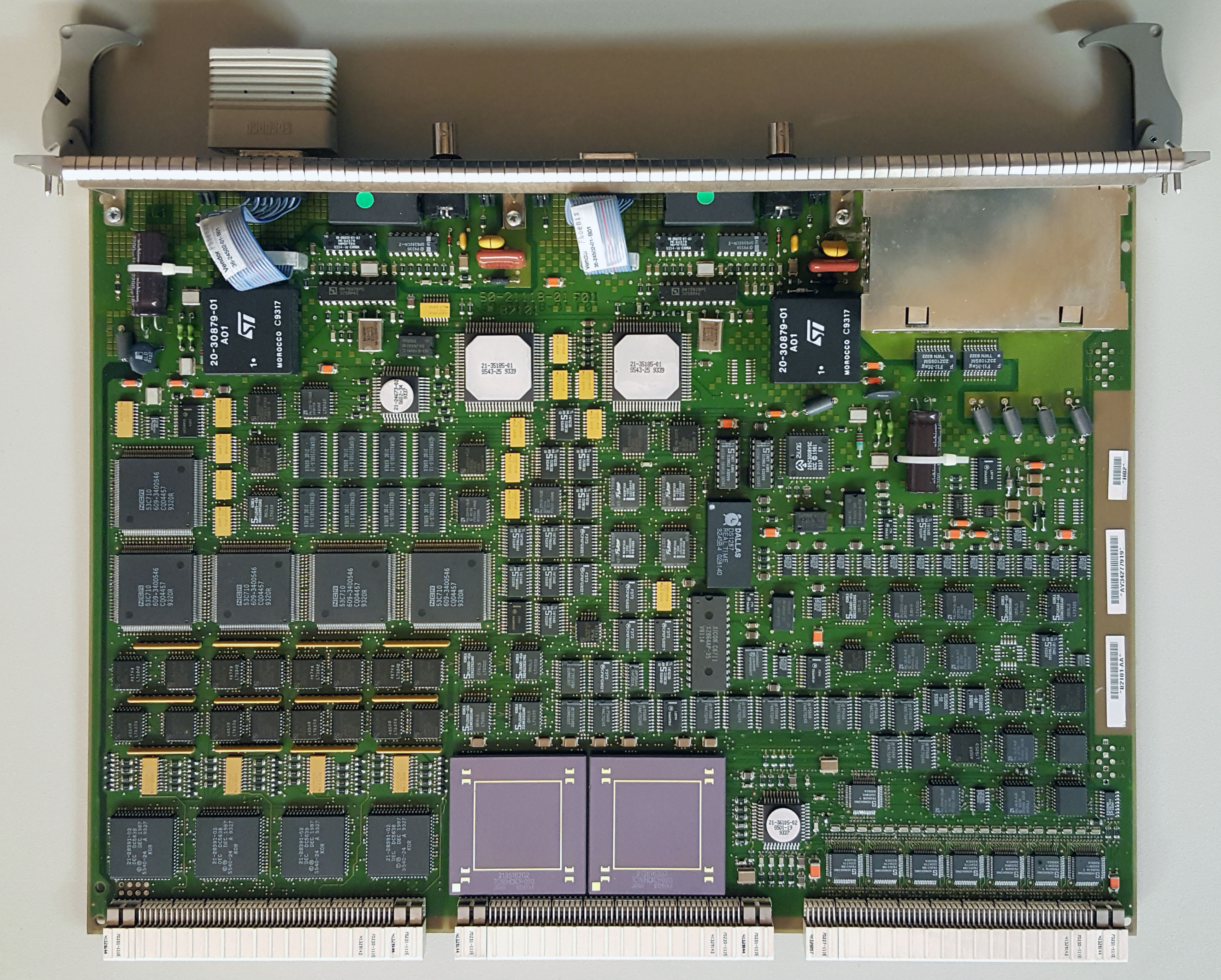

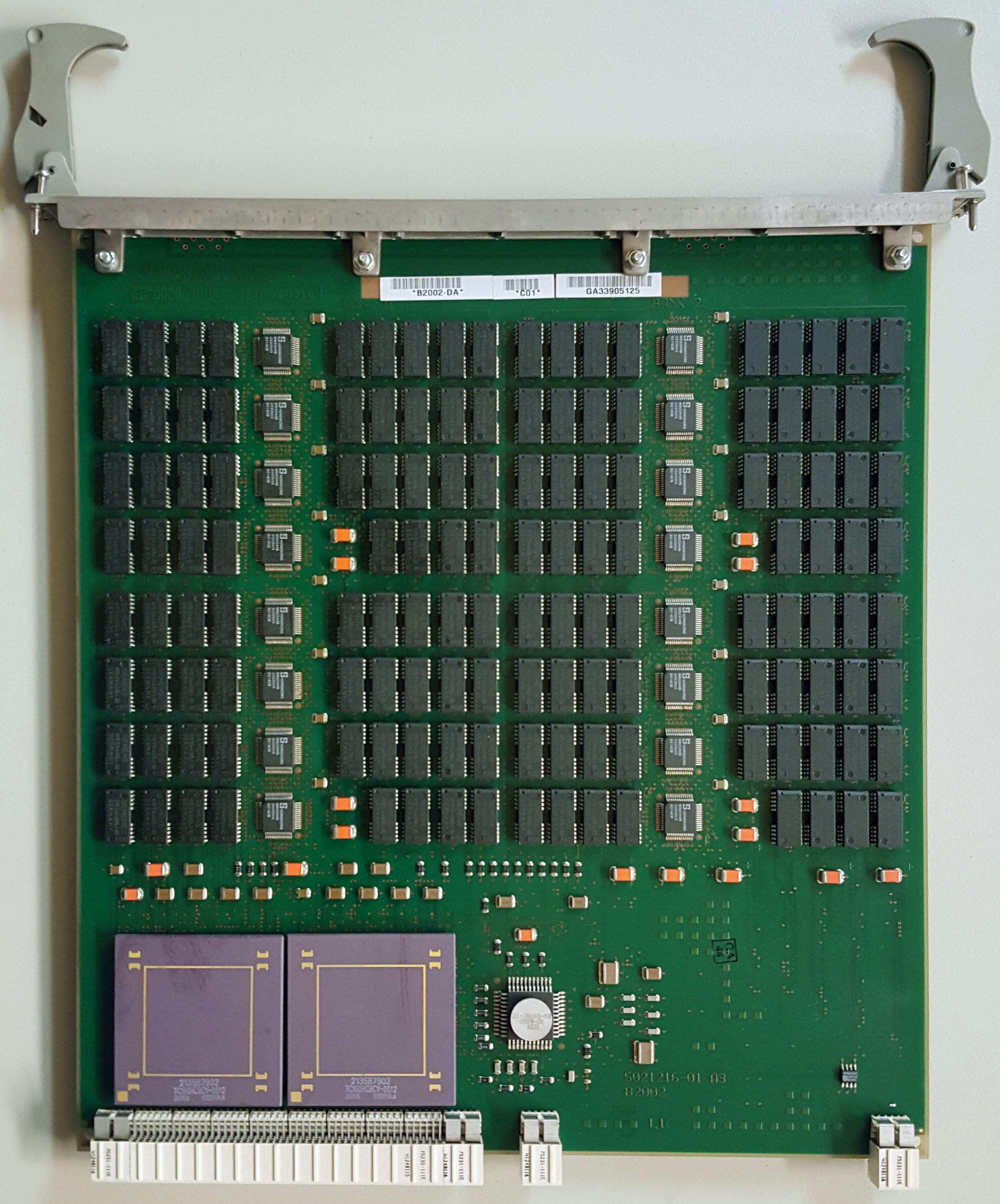

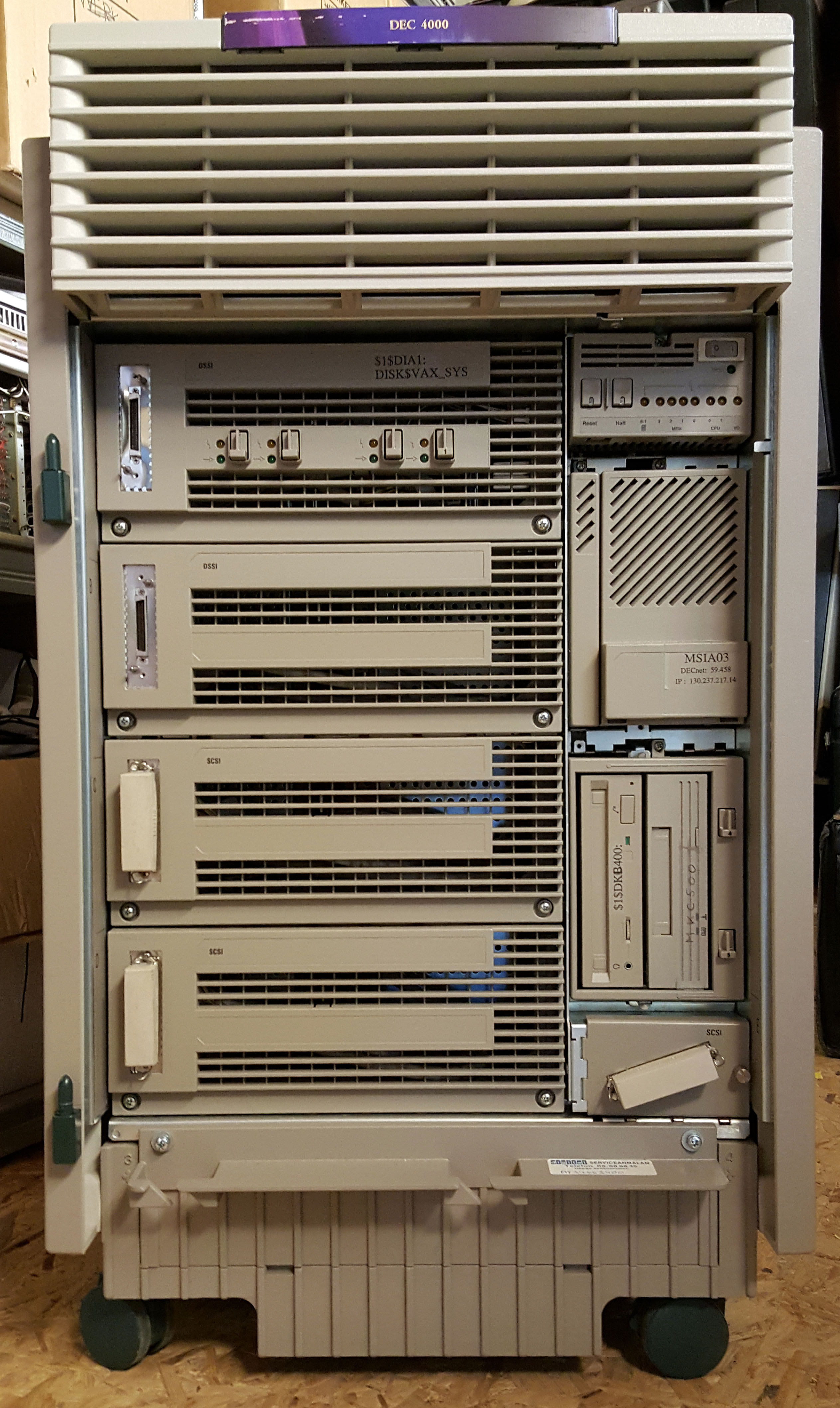

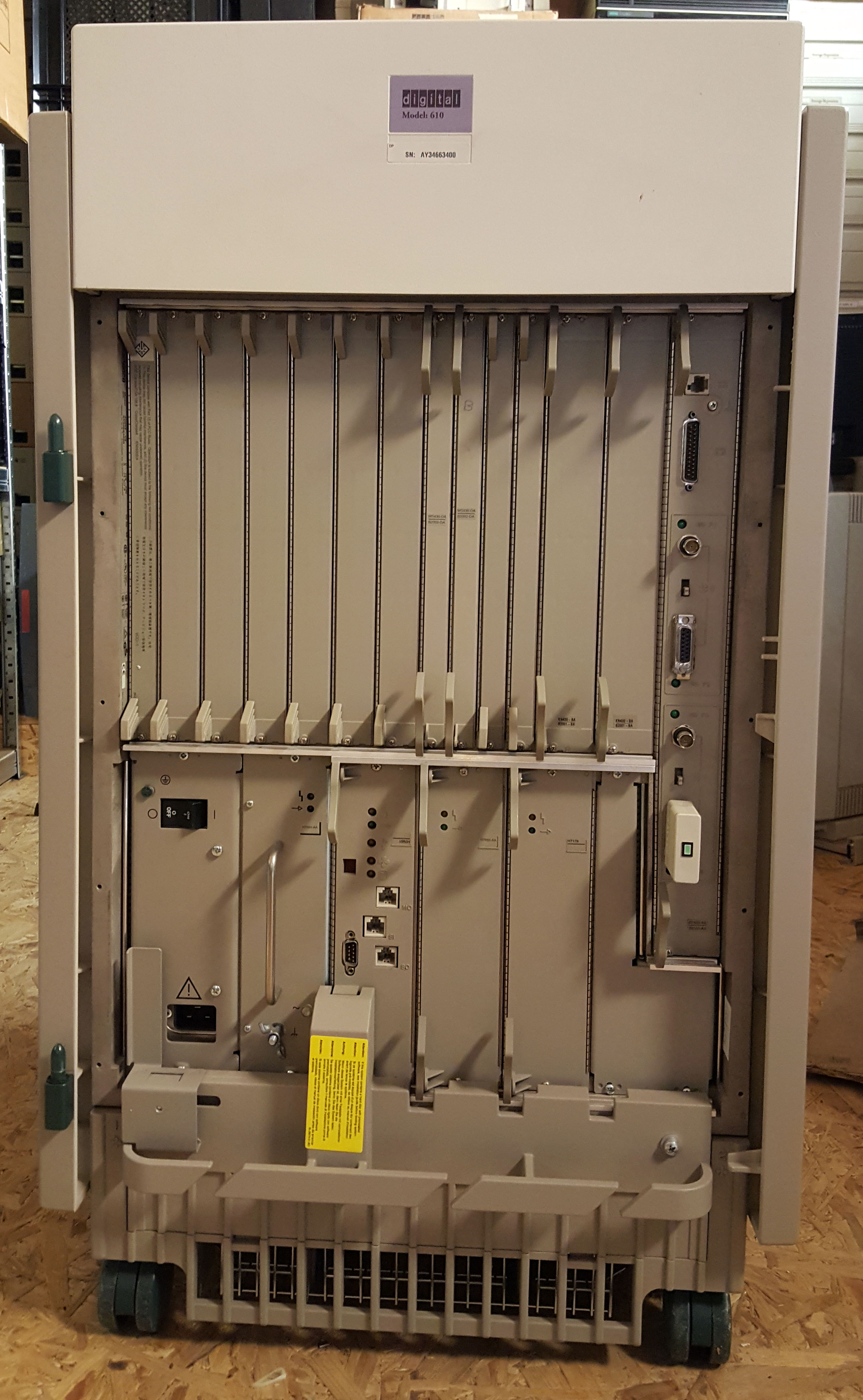

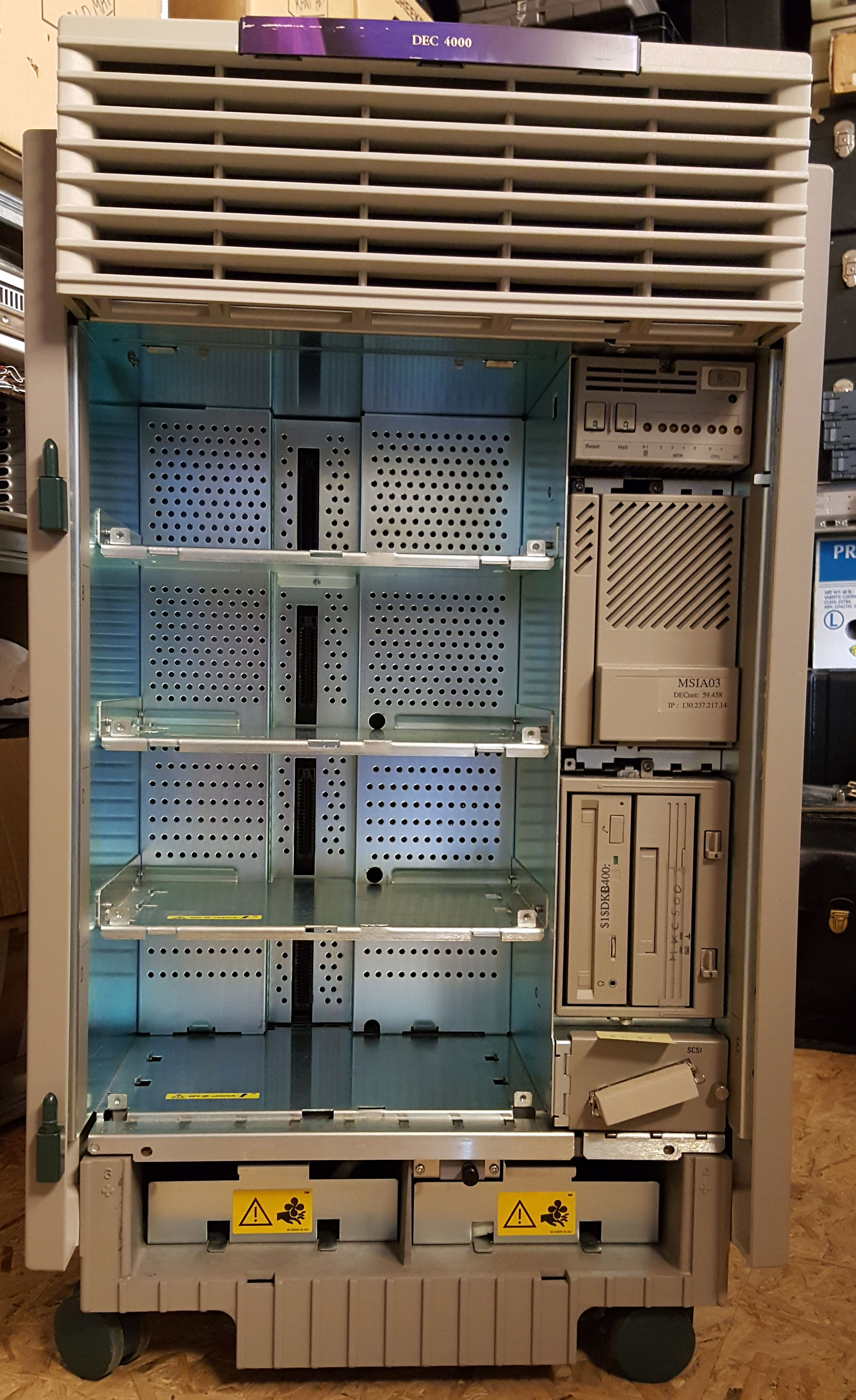

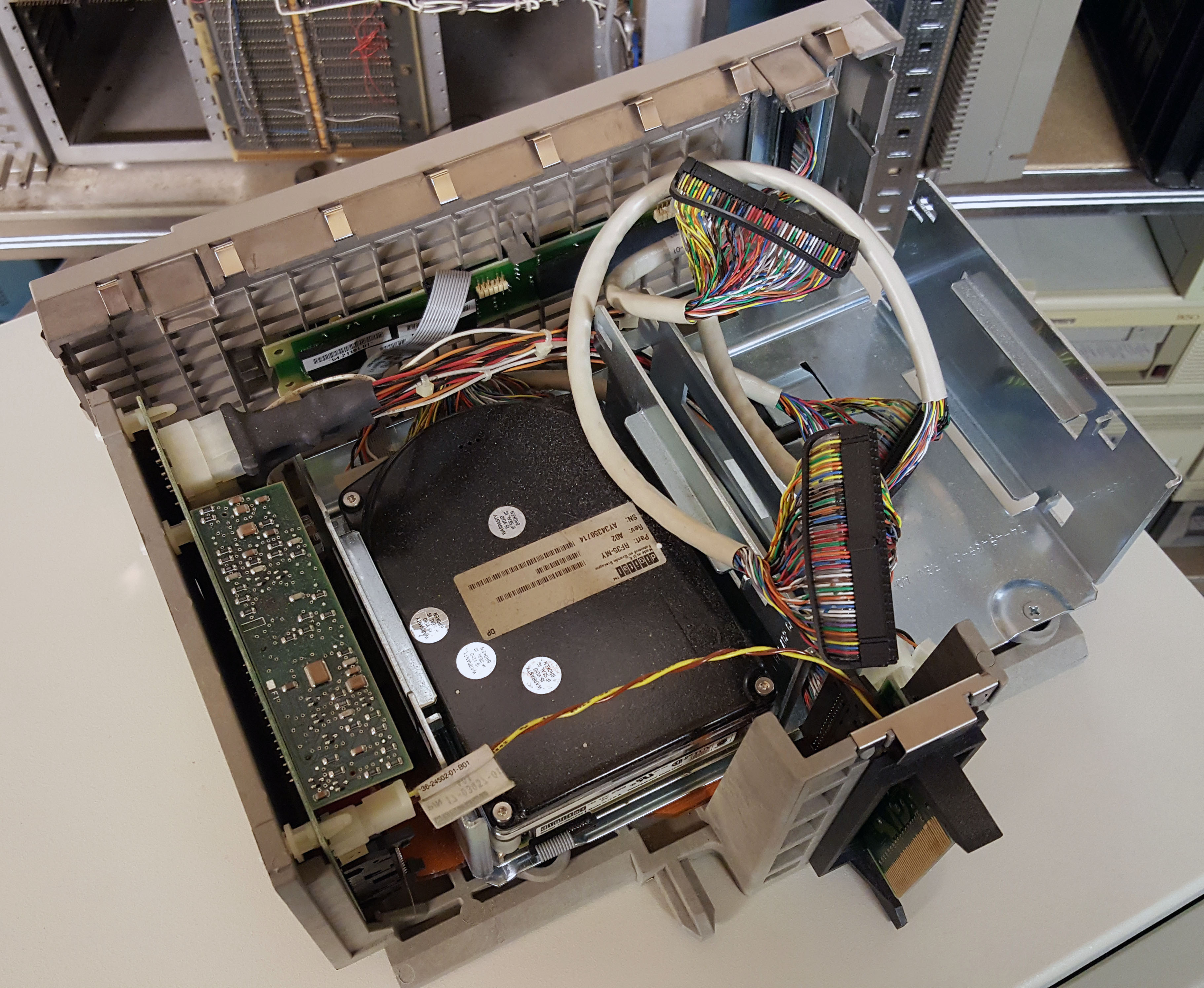

CPU, memory, I/O and power supplies are all situated at the back of the machine, leaving room in front of the machine for storage. There are 4 disk drawers, each of which can hold up to 4 disks. The disk controllers these connect to can be set to either SCSI or DSSI mode.
Cataloged Items
DEC DEC 4000 AXP Model 620 [AY33640913]
DEC 4000 AXP
| Amount of memory: | 384MB |
| CPU Speed: | 160MHz |
| State: | parts donor |
| Serial Number: | AY33640913 |
| Acquired in: | July 4th Megahaul - 2012 acquisition from Fred van Kempen |
| Location: | Collection / No longer in collection |
| Topology: |
|
DEC DEC 4000 AXP Model 610 [R0287]
DEC 4000 AXP
| Amount of memory: | 512MB |
| CPU Speed: | 160MHz |
| State: | Fully operational |
| Serial Number: | AY34663400 |
| Accession number: | R0287 |
| Acquired in: | Yggdrasil's Final Journey - 2016 gift from Pontus Pihlgren |
| Location: | Collection / Museum / Small Iron Room |
| Topology: |
|
DEC DEC 4000 AXP Model 620 [R0209]
DEC 4000 AXP
| Amount of memory: | 128MB |
| CPU Speed: | 160MHz |
| State: | Fully operational (but missing 128MB of memory) |
| Serial Number: | AY34663381 |
| Accession number: | R0209 |
| Acquired in: | Yggdrasil's Final Journey - 2016 gift from Pontus Pihlgren |
| Location: | Collection / Museum / Small Iron Room |
| Topology: |
|
